Stainless Steel Woven Wire mesh Cloth

Wire mesh size:

FOB Price:
Min.Order:
Delivery Time:
Supply Ability:
Shipping Port:
Payment Terms:



Description

Stainless Steel Woven Wire Mesh

Wire materials :304 316 Stainless Steel Wire
Features: Weaving precision, structure compact,
acid and alkali resistance, high filtration precision,
wear-resisting, compression performance is good.
Usage: used for water, oil and other liquid precision pressure filter,fuel filter, vacuum filter and is suitable for the aerospace, petroleum, chemical, chemical fiber, rubber,
tire manufacturing, metallurgy, medicine, food and other industries, pressure is not easy to deformation,high temperature resistant, do the necessary material sintering net
Details table Stainless steel wire mesh
MaterialSS wire  SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Weave style plain woven wire mesh
Application screen filters woven wire mesh
Mesh Count 1x1-635x635mesh/inch,
Plain weave wire mesh can be woven up to 500 mesh.
Twill weave wire mesh can be woven from 30 to 635 mesh.
Thread Diameter  0.008-0.08inch (0.0203-2.03mm)
Mesh Opening 0.0008-0.92inch(0.0203-23.37mm)
Hole style square
   Plain weave Stainless steel wire mesh

Mesh/Inch Wire Diameter Aperture Open Area Weight
Mesh Acount Inch mm inch mm % LB/100SQfoot
10X10 0.02 0.51 0.08 2.03 64 26.1
20X20 0.02 0.508 0.03 0.76 36 55.2
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
50X50 0.009 0.229 0.011 0.28 30.3 28.4
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
Other size customized

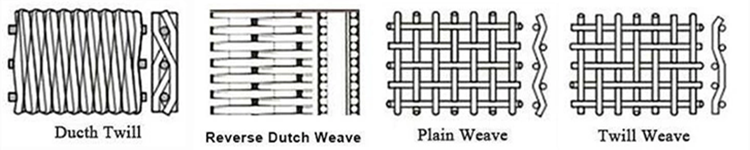

 Detais Woven Wire Mesh stainless steel

detais Woven Wire Mesh stainless steel

Plain weave Stainless steel wire mesh
Dutch Weave Stainless steel Wire Mesh
Type Mesh/Inch
Wire diameter
(inch)
Absolute Filtration Finess μm Nominal Filtration Finess μm
Plain Dutch Weave Wire Mesh 8 × 85 - 80 × 400 0.014'' × 0.0126''
- 0.0049'' × 0.0028''
318-340 to 43-48 250-255 to 35-40
Twill Duntch Weave Wire Mesh 20 × 250 - 500 × 3200 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' 110-120 to 8-9 98-105 to 2-3



Dutch Weave Stainless steel Wire Mesh

Packing and delivery of Stainless Steel Woven Wire Mesh

Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Application Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

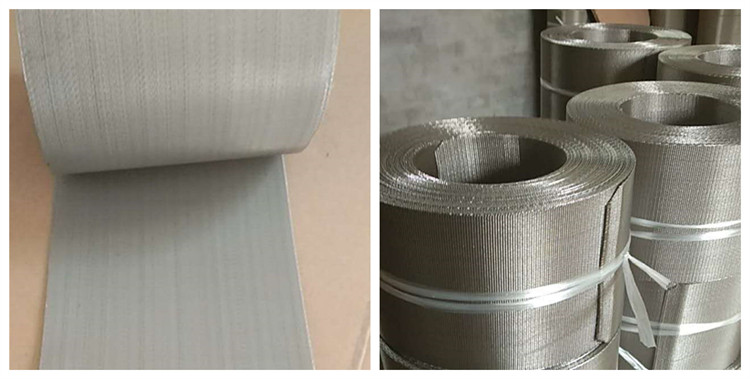

Stainless Steel Woven Wire Mesh roll
Stainless Steel Woven Wire Mesh packingStainless Steel Woven Wire Mesh  loading
