Dutch Weave Woven Wire Mesh

Wire mesh size: 30×150mesh

FOB Price: $16-$60/m2
Min.Order: 10M2
Delivery Time: 10-20days
Supply Ability: 10000m2/day
Shipping Port: XINGANG,GUANGZHOU,QINGDAO,SHANGHAI,YIWU
Payment Terms: T/T,L/C,Westerm Union,MoneyGram



Description

Stainless Steel Dutch Weave Woven Wire Mesh

  • Material types: we have defernce materials of stainless steel wire S.S201,S.S304,S.S304L, S.S316,S.S.316L
  • Features:  weaving precision, structure compact, acid and alkali resistance, high filtration precision, wear-resisting,compression performance is good.
  • Usage:Used for water, oil and other liquid precision pressure filter, fuel filter, vacuum filter and is suitable for the aerospace,petroleum, chemical, chemical fiber,rubber, tire manufacturing, metallurgy, medicine, food and other industries,pressure is not easy to deformation, high temperature resistant,do the necessary material sintering net.
Materials: Stainless steel 304 316 316L Brand Name  Yingtaida
Use Screening filters Weave Style Plate, twill, ducth & reversed Weave
Width: 0.5m-4m Length: 30.5m or as request
Mesh Openings 0.003  to 10mm
 (other specifications on request)
Wire Diameters 0.02-2.00 mm
payment T/T& L/C packing wood boxes

The deference materials of stainless steel wire

AISI C SI Mn P S Cr Ni
201 ≤0.15 1 5.5-7.5 ≤0.06 ≤0.03 16-18 ≤0.25
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 18-20 8-9
304L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 18-20 9-10
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16-18 10-12
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16-18 12-15
Dutch Weave Woven Wire Materials

Dutch Weave Woven Wire Mesh Types
  • plain weave: 0.5X0.5mesh to 635X635 mesh
  • twill weave:20x20mesh to 400x400mesh
  • plain dutch weave: plain dutch weave
  • twill dutch weave: 20x250mesh to 400X2800mesh
  • reversed dutch weave: 48x10mesh to 720x150mesh

►Description of plain dutch weave wire mesh

Item Mesh Diameter of wire Filtration precision(um) Width
40 10×64 0.55×0.42 260 1-1.6m
50 12×75 0.45×0.35 220
80 24×110 0.35×0.25 160
100 25×140 0.28×0.20 100
120 30×150 0.25×0.18 80
140 35×180 0.20×0.16 70
160 40×200 0.18×0.13 60
180 45×220 0.16×0.12 56
200 50×250 0.15×0.11 50
240 60×300 0.14×0.09 45
260 65×320 0.13×0.08 36
280 70×400 0.125×0.07 34
300 80×700 0.11×0.039 32
We can according to your special need to made

►Description of  twill dutch weave wire mesh

Mesh
Wire diameter (mm)
Weight (kgs/m2)
72*15
0.45*0.55
4.8
120*16
0.35*0.45
4.3
132*18
0.30*0.45
4.3
152*24
0.30*0.45
4.5
160*17
0.27*0.45
3.6
170*17
0.27*0.45
3.89
180*19
0.26*0.45
4.05
200*40
0.17*0.27
2.17
260*40
0.15*0.25
2.09
325*40
0.13*0.24
1.95
we can according to your special need to made

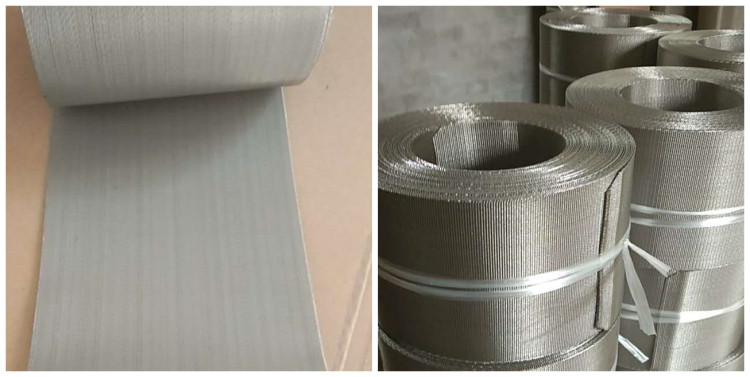

►Description of reverse dutch weave wire mesh

Item Mesh Diameter of wire Filtration precision(um) Width
80II 20×250 0.28×0.2 38 1-1.6m
120II 30×300 0.25×0.18 36
200II 50×500 0.14×0.11 34
320I 80×700 0.10×0.07 32
320II 80×780 0.10×0.07 30
360 90×780 0.10×0.07 25
400I 100×780 0.10×0.07 22
400II 100×900 0.10×0.063 20
500 120×1100 0.07×0.05 17
630 150×1400 0.063×0.04 16
650 165×1400 0.07×0.04 14
685 180×1800 0.063×0.032 13
795I 200×1400 0.07×0.04 12
795II 200×1800 0.05×0.032 10
850 210×1900 0.045×0.03 10
1000 250×2000 0.045×0.028 8
1125 280×2200 0.036×0.026 7
1200 300×2200 0.036×0.026 6
1280 325×2300 0.035×0.025 5
1600 400×2800 0.03×0.018 3
( we can according to your special need to made)
Dutch Weave Woven Wire Mesh

The common shiping of dutch weave woven wire mesh

  • 1.for small quantity shipped by courier.
  • 2.for large quantity shiped by air or by sea.
  • 3.tracking number will be emailed to you after order has been shipped.
  • 4.If you have forwarder in China we can send to your forwarder for free.

packing of dutch weave woven wire  meshDutch Weave Woven Wire Mesh Parking
